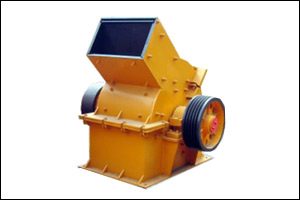

Coal Crushers
Efficient & Reliable Coal Crushers for Industrial Applications
Impact hammer type
At REBELL ENGINEERS PVT. LTD., we design and manufacture high-performance Coal Crushers that deliver consistent crushing efficiency, low power consumption, and long service life.
We are a leading Manufacturer, Supplier, and Exporter of Coal Crushers, and our advanced production setup is located in Sangli, Maharashtra, India.
Our Coal Crushers are widely used in power plants, sugar factories, co-generation units, and cement industries, where they play a crucial role in crushing coal into uniform particle sizes for efficient combustion and energy utilization.
Our crushers are built to handle both dry and semi-moist coal, ensuring effective crushing through impact, grinding, and compression. The compact and durable design ensures smooth operation even in demanding environments.
Coal Crushers from REBELL ENGINEERS PVT. LTD. are ideal for industries that require continuous, high-capacity fuel preparation systems.
Key features
- High Crushing Efficiency: Multiple impact stages ensure uniform particle size.
- Energy Efficient: Optimized design minimizes power consumption.
- Continuous Operation: Suitable for 24x7 industrial use.
- Durable Construction: Built for tough working environments.
- Low Maintenance: Easy access to replaceable parts and hammers.
- Controlled Output: Adjustable screen bars for customized particle size.
- Minimal Dust Generation: Enclosed housing reduces pollution.
- Smooth Operation: Balanced rotor minimizes vibration and noise.
The Coal Crusher primarily operates on the impact or shock principle of crushing. Here's how the process works:
This repetitive impact-grind-crush mechanism ensures that the final output is of uniform particle size, suitable for combustion in industrial boilers and furnaces.
| Capacity range | Our Coal Crushers are available in a wide range of capacities from 5 TPH to 100 TPH, depending on feed size, hardness, and material density. |
|---|---|
| Material of Construction | Mild Steel (MS) / Stainless Steel (SS) |
| Crushing Mechanism | Impact / Hammer Type |
| Drive Type | Geared Motor / Belt Drive |
| Feed Size | Up to 300 mm |
| Output Size | 6 mm – 50 mm (Adjustable) |
| Operation | Continuous / Automatic |
| Power Requirement | As per capacity and design |
| Crushing action | Impact — high-speed rotating hammer |
| Discharge control | Screen bar gap sets the product particle size |
Applications
- Thermal Power Plants: For crushing coal before boiler feeding.
- Co-generation Units: Fuel preparation for energy generation.
- Sugar & Biomass Plants: Efficient fuel processing in hybrid systems.
- Cement Industries: Crushing coal for kiln firing and process heat.
- Fertilizer & Chemical Plants: Pulverizing raw coal and coke.
- Material Handling Units: For uniform size reduction of raw fuel materials.
Sectors served
Materials handled
- A Coal Crusher is a mechanical device designed to reduce large chunks of coal into smaller, manageable sizes suitable for boilers and furnaces.
Sequence of operation
- Feeding: Raw coal is fed into the crushing chamber through an inlet hopper.
- Impact Crushing: Inside the chamber, high-speed rotating hammers strike the coal, breaking it down into smaller fragments.
- Kinetic Action: The crushed material gains kinetic energy from the hammer's rotation and impacts the inner surfaces — including the frame, screen bars, and other particles.
- Multiple Breakdowns: Coal is broken several times due to repeated impacts, grinding, and squeezing between hammers and screen bars.
- Discharge: Finer particles smaller than the screen gap are discharged through openings, while larger pieces remain for further crushing.
Design & Construction
- Our Coal Crushers are engineered for heavy-duty operation, precision balance, and minimal vibration.
- Heavy-Duty Body: Fabricated from high-grade mild steel for structural strength and durability.
- Rotor Assembly: Equipped with multiple balanced hammers for consistent impact crushing.
- Drive Mechanism: Geared motor or belt drive system for smooth and efficient power transmission.
- Screen Bars: Replaceable screen plates for controlling output size.
- Feed Hopper: Designed for uniform material entry and minimal blockages.
- Safety Guards: Provided for operator protection and safe maintenance.
- Compact Layout: Space-efficient design suitable for all plant layouts.
- Our crushers are designed using advanced CAD tools, ensuring perfect alignment, balanced rotation, and optimized performance.
Advantages of Choosing REBELL Coal Crushers
- Proven Performance: Trusted in multiple industries for reliable fuel preparation.
- In-House Design & Manufacturing: Ensures quality and consistency in every unit.
- Custom Engineered Systems: Tailored to match specific plant configurations.
- Rugged & Compact: Built to handle demanding conditions.
- Easy Integration: Works seamlessly with conveyors and feeders.
- Long Service Life: Heavy-duty build and precision components ensure durability.
- Comprehensive Support: From design consultation to installation and service.
Integration with Bulk Material Handling Systems
- Belt Conveyor Systems
- Screw Conveyors
- Bucket Elevators
- En-Mass Conveyor Systems
- This integration provides automated material flow, improved process efficiency, and safe, continuous operation in industrial environments.
- ➡ Explore more at Bulk Material Handling Systems
Quality Assurance
At REBELL ENGINEERS PVT. LTD., every Coal Crusher is manufactured under strict quality control measures to ensure:
- Accurate balance and alignment of rotor assembly.
- Reliable performance under heavy load conditions.
- Proper material selection for wear and corrosion resistance.
- Compliance with industrial safety and design standards.
- Thorough testing before dispatch to ensure trouble-free installation
- Our consistent commitment to engineering precision and durability ensures long-term operational reliability.
Industries We Serve
Our Coal Crushers are trusted by leading industries across India, including: ✅ Power Generation Plants ✅ Co-generation Units ✅ Sugar & Biomass Energy Plants ✅ Cement & Fertilizer Industries ✅ Mining & Material Handling Units
Why Choose REBELL ENGINEERS PVT. LTD.?
- Over [X] years of experience in bulk material handling and crushing systems.
- Advanced in-house design, fabrication, and testing facilities.
- Ability to customize crushers for different capacities and materials.
- Proven installations in industrial and power plant environments.
- Reliable after-sales support and spare part availability.
- Committed to innovation, quality, and customer satisfaction.
Need this sized for your plant?
Send the material, the tonnage and the centre distance or lift. We will come back with the specification.
