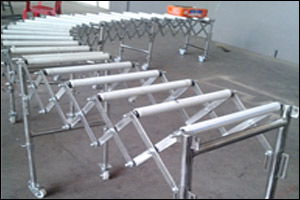

Flexible Conveyors
Efficient and Adaptable Flexible Conveyors for Dynamic Material Handling
Self tracking, height adjustable
REBELL ENGINEERS PVT. LTD. is a reputed Manufacturer, Supplier, and Exporter of Flexible Conveyors, offering high-performance and space-efficient material handling solutions for diverse industries. Our modern manufacturing facility is located in Sangli, Maharashtra, India, where we design and produce robust and versatile conveyor systems tailored to meet the evolving needs of manufacturing, warehousing, and logistics sectors.
REBELL Flexible Conveyors are designed for maximum mobility, easy adaptability, and superior performance, making them ideal for truck loading/unloading, retail stores, dispatch zones, shipping areas, and plant floors.
Flexible Conveyors are designed for versatility and mobility, allowing operators to easily adjust the conveyor's length, shape, and height based on the operational requirement.
They can expand, contract, bend, and curve to fit different layouts — providing unmatched flexibility for handling cartons, boxes, crates, and other packaged materials. These conveyors are particularly suitable for temporary or changing work environments, where conventional fixed conveyors are impractical.
Built with a modular and durable structure, REBELL Flexible Conveyors deliver smooth material transfer, easy setup, and long-lasting reliability in demanding industrial conditions.
Key features
- Highly Versatile: Adjustable in length, shape, and height to suit any application.
- Space-Efficient: Collapsible design saves valuable floor space when not in use.
- Self-Tracking Movement: Products naturally follow the conveyor path — no side guides or curves needed.
- Strong & Stable Construction: Heavy-duty square tubing legs ensure strength and long-term durability.
- Ergonomic Design: Easy height adjustment via locking knob for smooth operation.
- Portable & Mobile: Mounted on castor wheels for quick movement between locations.
- Low Maintenance: Simple construction for easy cleaning and minimal upkeep.
- Customizable: Available in different sizes, roller types, and load capacities as per requirement.
| Conveyor Type | Gravity / Skate Wheel / Roller Type |
|---|---|
| Frame Material | Mild Steel / Stainless Steel |
| Roller Type | Steel / Polymer / Zinc-Plated |
| Roller Diameter | 38 mm – 50 mm |
| Conveyor Width | 300 mm – 800 mm |
| Adjustable Length | 2 m – 10 m (Expandable) |
| Adjustable Height | 600 mm – 1200 mm |
| Load Capacity | Up to 50 kg/m |
| Mobility | Swivel Castor Wheels with Brakes |
| Surface Finish | Powder Coated / Galvanized |
| Operation | Manual (Gravity Type) |
| Tracking | Self tracking through curves, no engineered curve sections needed |
| Legs | Heavy-duty square tubing |
| Height | Adjustable by locking knob |
Applications
- REBELL Flexible Conveyors are ideal for industries that require quick and efficient material transfer in variable working areas.
- Truck Loading & Unloading: Quick setup at loading docks for efficient product transfer.
- Retail Stores: Handling boxes and cartons in back-end storage areas.
- Shipping & Dispatch Zones: Streamlining movement from packing stations to loading bays.
- Manufacturing Plants: Connecting different process stations for assembly or packaging.
- Warehouses: Flexible setup for changing layouts and seasonal operations.
- Distribution & E-commerce Centers: Dynamic loading and sorting lines for packages and parcels.
Sectors served
Design & Construction
Self-Tracking Design: Cartons naturally follow the twists and turns of the conveyor path without needing engineered curves or alignment adjustments. This design ensures smooth and efficient material flow in any direction.
- REBELL's Flexible Conveyors are engineered with precision to ensure consistent performance, high load capacity, and user-friendly operation.
- Square Tubing Legs: Built with exclusive heavy-duty square tubing legs for improved stability and longer service life, even in rough industrial environments.
- Adjustable Height: The conveyor bed height can be easily raised or lowered by simply turning the locking knob, allowing seamless integration with trucks, docks, or other conveyor systems.
- Expandable & Collapsible Design: The conveyor can be extended to the required length during operation and collapsed afterward for compact storage — making it ideal for space-limited areas.
- Roller or Skate Wheel Options: Available with zinc-plated steel rollers or durable polymer skate wheels, depending on the product weight and application.
- Mobility: Fitted with swivel castor wheels (with locking brakes) for effortless movement and secure positioning during operation.
- Frame Material: High-strength Mild Steel (MS) or Stainless Steel (SS) with a powder-coated finish for corrosion resistance and long service life.
Working Principle
- The flexible conveyor is positioned between the loading and unloading areas (e.g., from truck to warehouse floor).
- The conveyor is extended and shaped as required — straight, curved, or zigzag configuration.
- Self-tracking rollers guide cartons and packages automatically along the path.
- The adjustable height allows alignment with different loading levels or conveyor systems.
- After use, it can be folded and rolled away for compact storage, freeing up valuable floor space.
- This makes REBELL's Flexible Conveyors perfect for temporary, mobile, or variable process layouts.
Advantages of REBELL Flexible Conveyors
- Designed for versatility, mobility, and space-saving efficiency.
- Ensures continuous material flow even around curves and corners.
- Quick setup and retraction — ready for use within minutes.
- Durable components ensure long life in continuous operations.
- Reduces manual handling, improving safety and productivity.
- Compatible with other REBELL conveyor systems for integrated automation.
- Cost-effective solution for temporary or multi-location material transfer.
Integration with Other Systems
- Bag Stackers / Portable Belt Conveyors
- Roller Conveyors
- Silo Bag Stitching Conveyors / Slat Conveyors
- Overhead Bag Handling Systems
- These systems can work together to provide complete end-to-end automation — from bag filling and stitching to stacking, transfer, and dispatch.
- ➡ Visit our Bag Handling Systems page for integrated conveyor solutions.
Quality Assurance
At REBELL ENGINEERS PVT. LTD., every conveyor is manufactured with strict quality control and precision standards.
- Inspection of roller alignment, frame integrity, and leg strength.
- Testing for smooth expansion, retraction, and rolling operation.
- Load testing to ensure durability under full operational conditions.
- Corrosion resistance and finish inspection.
- Compliance with industrial safety and ISO quality standards.
Industries We Serve
✅ Warehousing & Logistics Centers
✅ Packaging & Distribution Facilities
✅ Manufacturing & Assembly Lines
✅ Food & Beverage Industries
✅ E-commerce & Retail Centers
✅ Shipping & Dispatch Areas
Why Choose REBELL ENGINEERS PVT. LTD.?
- Decades of experience in designing industrial conveyors and handling systems.
- In-house design and fabrication facilities ensuring consistent quality.
- Custom-engineered solutions for specific client needs.
- Proven expertise across multiple process and manufacturing sectors.
- Reliable after-sales support and spare part availability.
- Committed to engineering precision, reliability, and customer satisfaction.
Need this sized for your plant?
Send the material, the tonnage and the centre distance or lift. We will come back with the specification.
